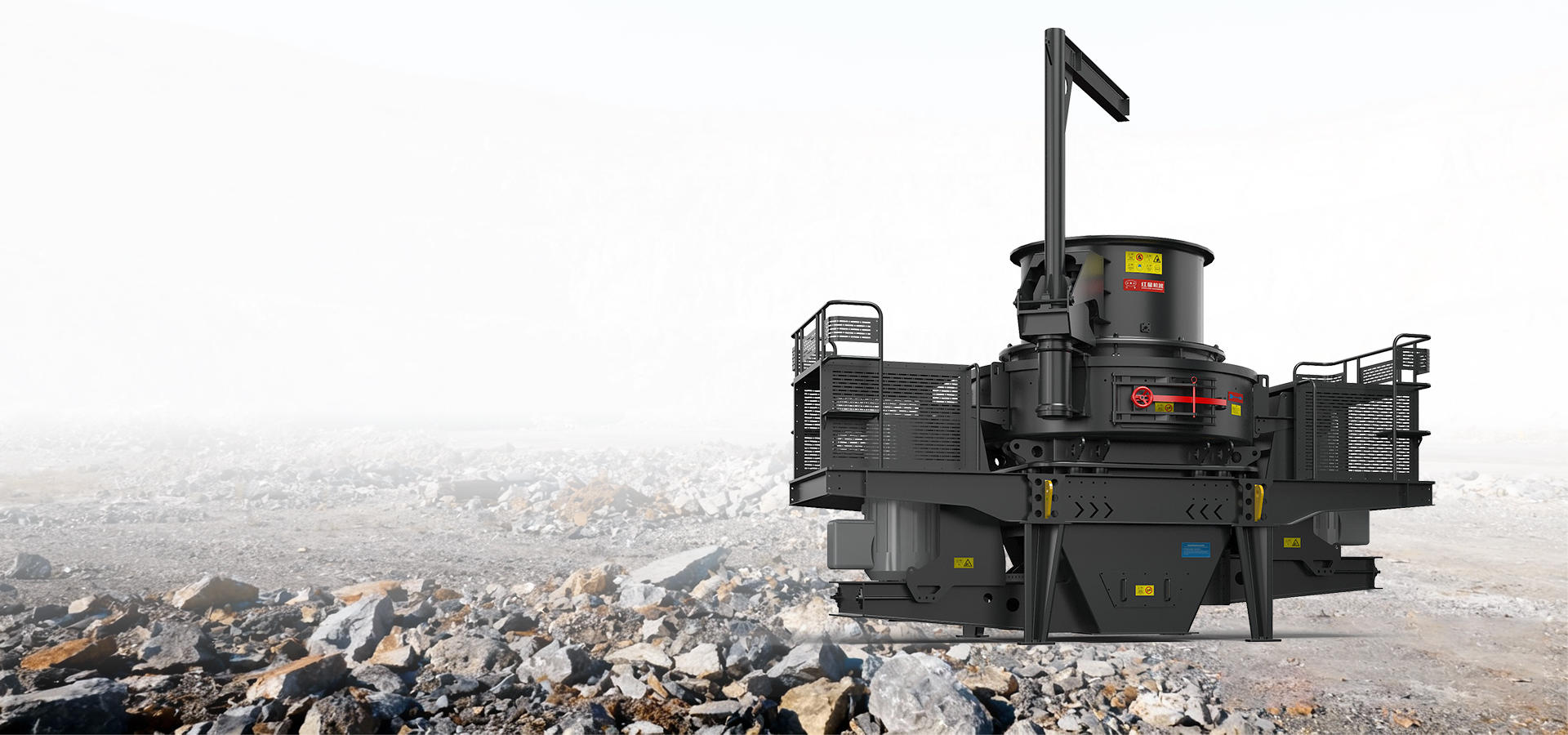

VSI7A Series Sand Making Machine

What is a VSI7A Series Sand Making Machine?

The VSI 7A series impact sand maker with deep cavity is a new generation product that not only draws on the advanced technology of similar products at home and abroad, but also has a number of independent research and development results. In the application of large and super large machine-made sand and fine aggregate production lines, it has demonstrated extremely powerful performance.

The VSI 7A series impact sand maker with deep cavity is also suitable for applications in the fields of metal/non-metal ore, metallurgical slag,and material recovery. VSI7A series sand making machines provide high-quality aggregates with more reasonable gradation and better grain shape to meet high-quality specifications.

Flexible feeding mode

By adjusting the hopper feeding device, can easily switch between the two modes of "falling feeding + center feeding" and "full center feeding". Adjusting the angle of the distribution plate can avoid the direct impact of the material on the impeller and reduce the abnormal wear of the impeller.
Body subdivision under high throughput

The design of the large discharge port makes the material unloading more smoothly, which effectively prevents material blockage, avoids abnormal damage to the equipment, and improves the crushing efficiency.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

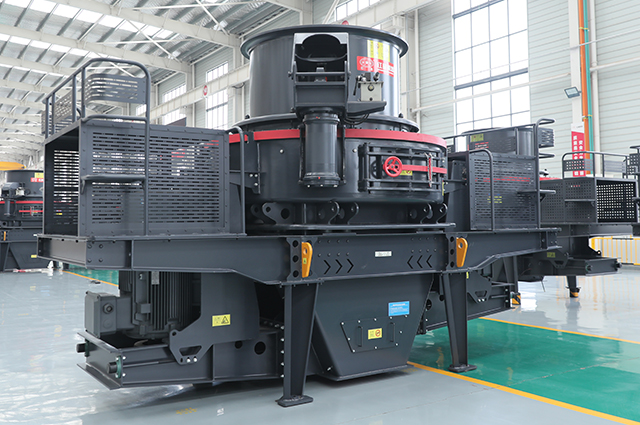

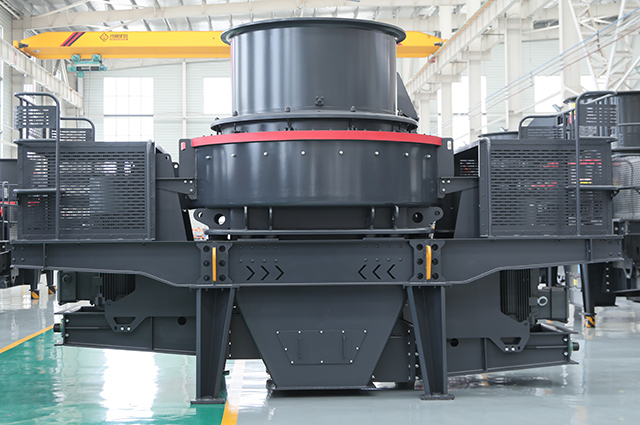

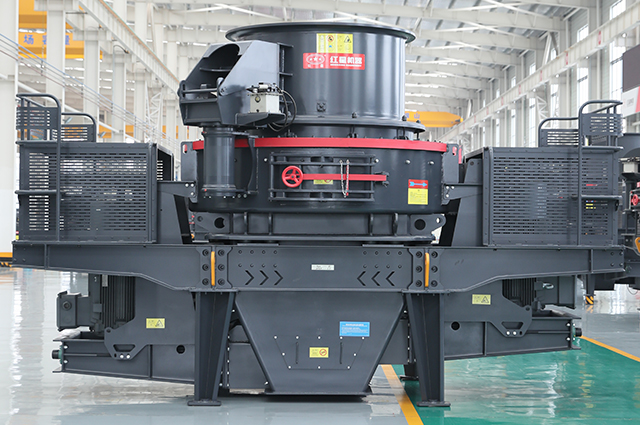

Product Display

Technical Parameter

Model	Hard material	Soft material	Sand Making	Sand Shaping	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
VSI7A 400	<45	<55	260-285	314-345	2×200
VSI7A 500	<45	<55	345-370	412-578	2×250
VSI7A 630	<50	<60	455-488	544-760	2×315
VSI7A 710	<50	<60	508-560	610-860	2×355
VSI7A 800	<50	<60	600-645	722-1005	2×400
VSI7A 1000	<50	<60	780-843	940-1310	2×1000

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sand Making	Sand Shaping	Motor Power（kw）
Model	Throughput （t/h）		Motor Power（kw）
VSI7A 400	260-285	314-345	2×200
VSI7A 500	345-370	412-578	2×250
VSI7A 630	455-488	544-760	2×315
VSI7A 710	508-560	610-860	2×355
VSI7A 800	600-645	722-1005	2×400
VSI7A 1000	780-843	940-1310	2×1000

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Customer Cases

Henan Hongxing Mining Machinery is dedicated to being there for you for the life of your solution. Discover the various typical examples of our applications for your business.

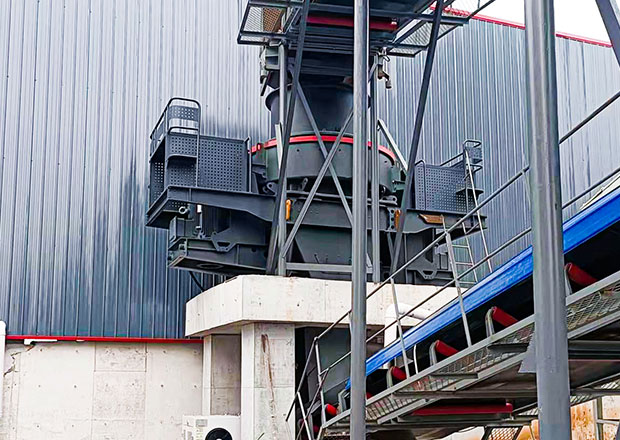

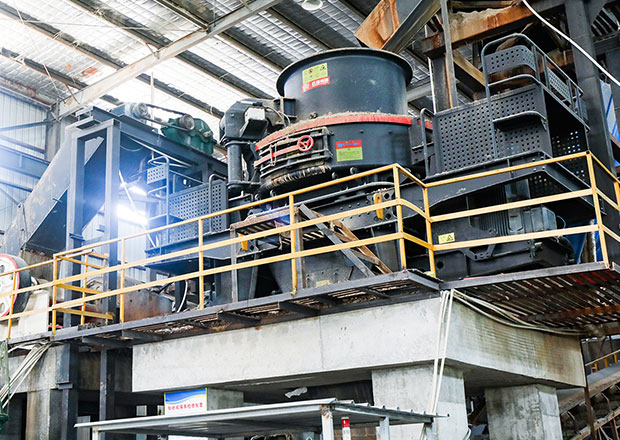

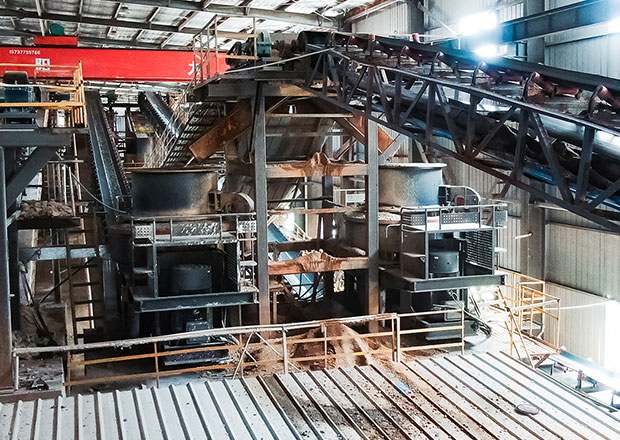

Case1
