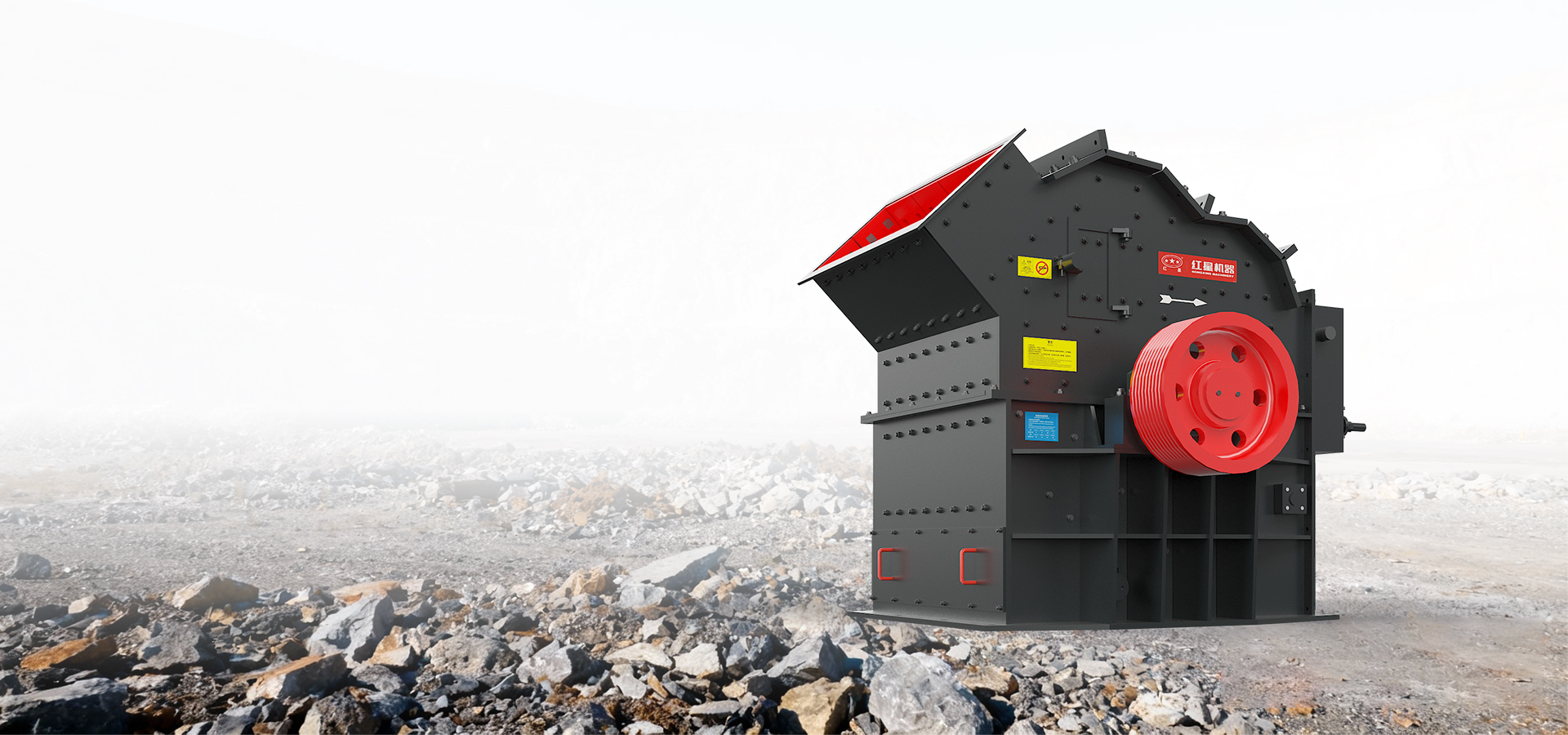

What is a Tertiary Impact Crusher?

Tertiary Impact Crusher, also known as fine crusher, is a new fine crusher. The machine has a wide range of uses and its performance has reached the international excellent level. It is an effective, practical and reliable gravel machine, especially suitable for making abrasive, refractory materials, cement, quartz sand, steel sand and other hard and brittle materials. The fine crusher is an efficient and energy-saving gravel sand making equipment, which is 50% more energy efficient than traditional fine crusher. It is the world's most advanced fine crushing machine.

  • Outstanding Advantages Of Tertiary Impact Crusher

    1. High efficiency

    The design of the grid plate and the hard extrusion are used to make the fine crusher’s efficiency greatly improved.

    2. High operating rate and low power consumption

    High line speed, fast operation; power saving and energy consumption are better than traditional roller pressing machines

    3. Long service life of the quick-wear parts

    Adopting the wear-resistant material, its parts are endurable

  • Working Principle

    When the fine crusher is working, the third-generation sand making machine is driven by the motor, the rotor rotates at high speed, the material enters the first crushing cavity and hits the board hammer on the rotor, then enters the second fine crushing cavity to be crushed, and finally is discharged from the outlet.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

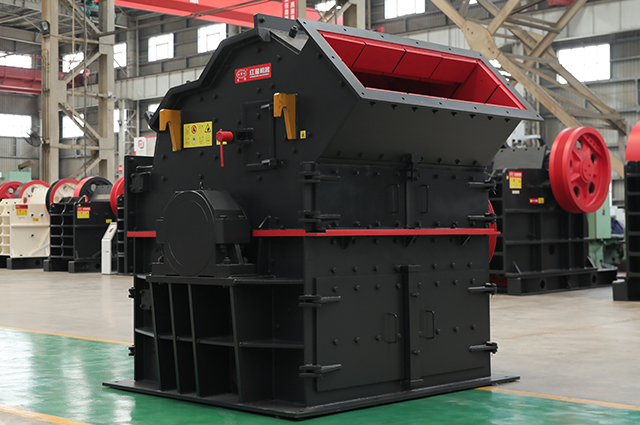

Product Display

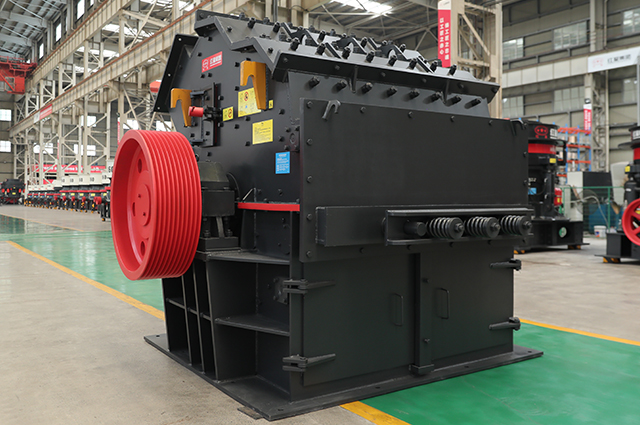

Product Display

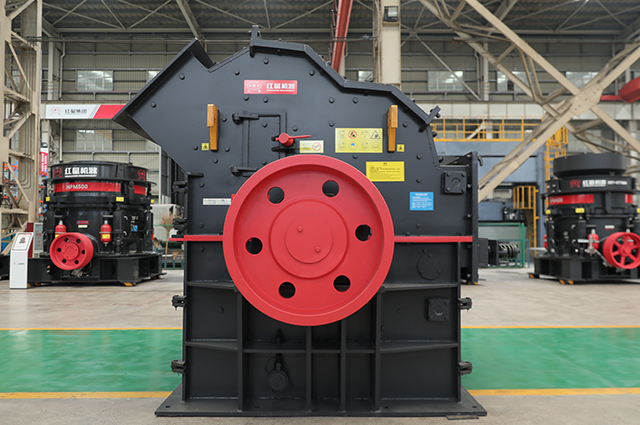

Product Display

Technical Parameter

Model PXJ0804 PXJ0806 PXJ0808 PXJ1010 PXJ1212 PXJ1414 PXJ1616 PXJ1818
Rotor diameter×width(mm) 800×400 800×600 800×800 1010×1010 1200×1200 1400×1400 1600×1600 1800×1800
Limestone(t/h) 5-45 7-55 10-65 15-75 20-110 25-150 30-200 40-260
Power(kW) 37 45 45 55 110 160 250 315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Rotor diameter×width(mm) Limestone(t/h) Power(kW)
PXJ0804 800×400 5-45 37
PXJ0806 800×600 7-55 45
PXJ0808 800×800 10-65 45
PXJ1010 1010×1010 15-75 55
PXJ1212 1200×1200 20-110 110
PXJ1414 1400×1400 25-150 160
PXJ1616 1600×1600 30-200 250
PXJ1818 1800×1800 40-260 315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Customer Cases

Henan Hongxing Mining Machinery is dedicated to being there for you for the life of your solution. Discover the various typical examples of our applications for your business.

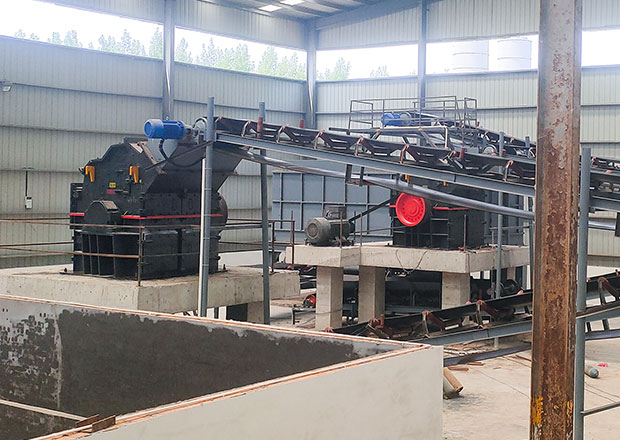

Case1

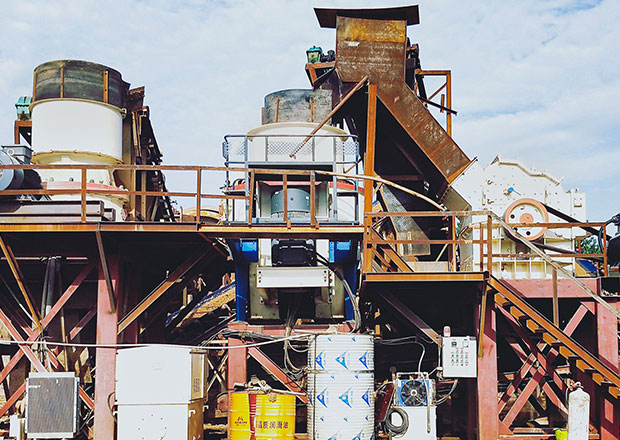

Case1

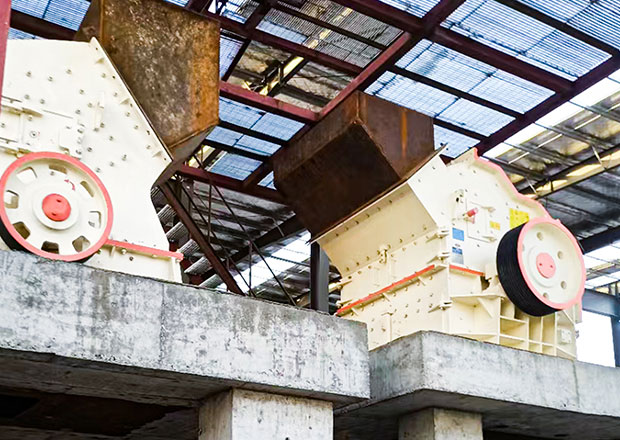

Case1
