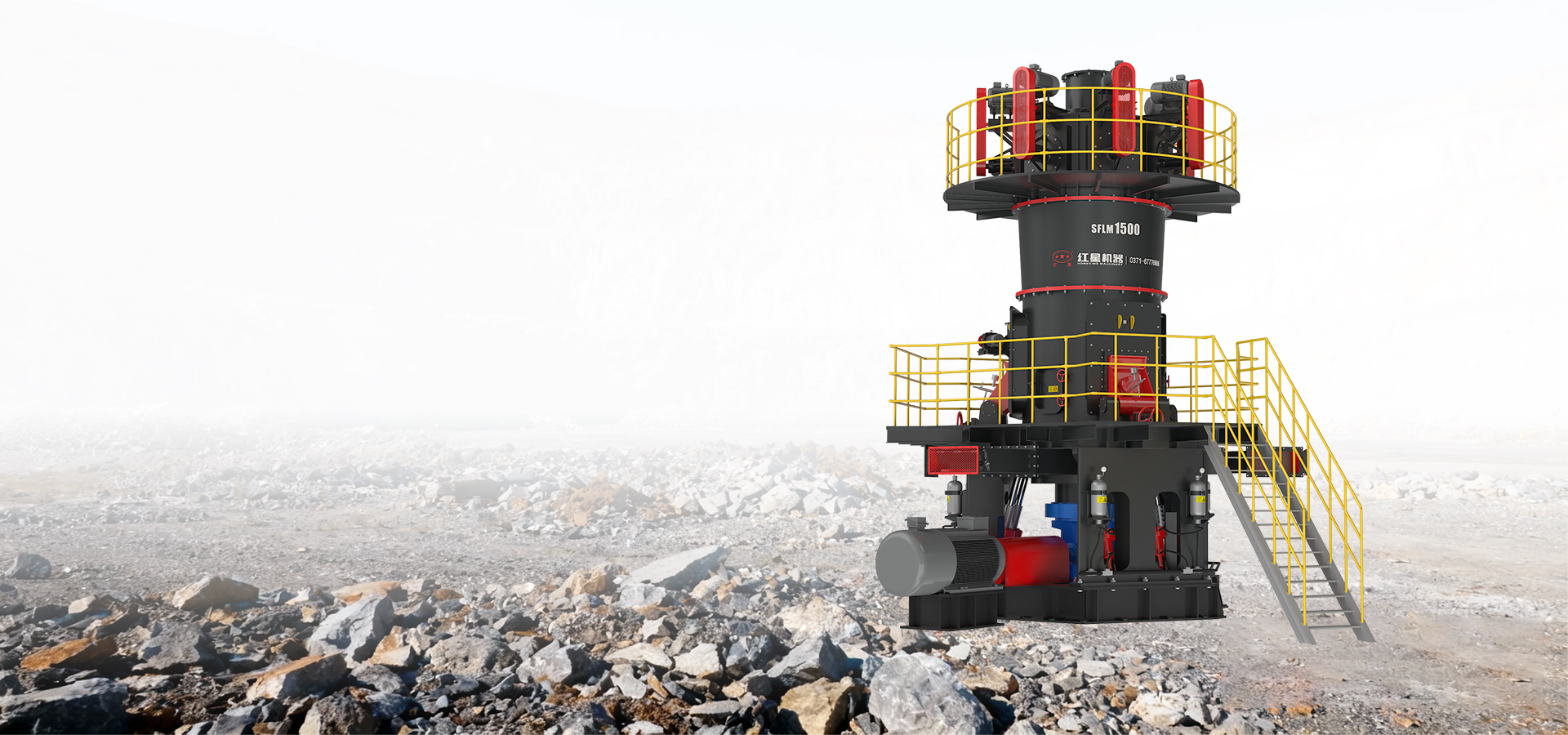

SFLM Series Ultra-fine Vertical Grinding Mill

SFLM Series Ultra-fine Vertical Grinding Mill

Get a Quote

What is a SFLM Series Ultra-fine Vertical Grinding Mill?

SFLM series ultra-fine vertical mill is a large-scale ultra-fine vertical mill equipment suitable for the development requirements of the non-metallic mineral industry,which is an ideal equipment for the large-scale production of ultra-fine powder with high efficiency,high output,environmental protection and energy saving. It is widely used in chemical industry,metallurgy,non-metallic minerals and other industries,and is suitable for ultrafine powder production and processing of limestone,calcite, marble,heavy calcium,pyrophyllite,talc and other minerals.

  • High grinding efficiency

    Specially designed roller sleeve and liner grinding curve for ultra-fine powder grinding,it is easier to form a material layer,with high grinding efficiency and one-time grinding with high yield.

  • Highly efficient and energy-saving

    Adopting the principle of variable frequency multi-head powder separator,the fineness of the ground finished product can be achieved within the selected range.It saves energy consumption by 30%-50%compared with ordinary mills.

  • Low operation and maintenance cost

    The grinding roller can be turned out of the machine with a hydraulic device,making maintenance easy.The grinding roller and liners are made of high-quality materials,and the roller sleeve can be turned over to use,and the service life is long.

  • Stable product quality

    Adopting the material layer grinding principle,the material stays in the mill for a short time,reducing repeated grinding.The finished product contains less iron,the whiteness and clarity are high,the product particle shape is uniform,the particle size distribution is narrow,the cutting point is small,and the fluidity is good.,and the applicability is strong.

  • High degree of automation

    Using PLC/DCS automatic control system,can achieve remote control,easy to operate.

  • High reliability

    It adopts electronic limit and mechanical limit protection devices to avoid severe vibration and destructive impact, making the operation more stable.

Technical Parameter

Models Main machine power
(kW)		 Powder classifier power
(kW)		 Fan Power
(kW)		 Grinding material particle size D90
(mm)		 Moisture of grinding material Capacity
(t/h)
SFLM1000 132-185 4×15 90-132 <10(Max15) <3% 3-12
SFLM1200 220-280 6×15 185-200 4-14
SFLM1300 315-355 7×15 200-250 5-16
SFLM1500 355-400 8×15 280-315 7-18
SFLM1700 450-500 9×15 315-355 8-22

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Models Main machine power
(kW)		 Capacity
(t/h)
SFLM1000 132-185 3-12
SFLM1200 220-280 4-14
SFLM1300 315-355 5-16
SFLM1500 355-400 7-18
SFLM1700 450-500 8-22

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
