What is a PCZ Series Heavy Hammer Crusher?

The heavy hammer crusher is a kind of hammer crusher with quite advanced technique at the moment in the industry, which can realize one-time molding and be of high efficiency, energy conservation, and environmental protection. According to the requirements, the fineness and shape of the final product can be adjusted. It is specially applied to highway, construction, mining, metallurgy, building material, etc. It is applied to crush limestone and the medium-hardness materials. It doesn't need the secondary crushing process, which can decrease the cost by about 40% and consume less energy and need less investment.

  • Application of PCZ Heavy Hammer Crusher

    The PCZ heavy hammer crusher is applied to crush a variety of medium-hardness and crisp materials, such as limestone, coal, and so on. It is mainly used in cement, mining, coal dressing, electricity generation, chemical engineering, building material.

  • Properties of PCZ Heavy Hammer Crusher

    1. With the PCZ heavy hammer crusher, it doesn’t need the secondary crushing process, which can decrease the cost by about 40% and it consume less energy.

    2. It is specially applied to crush limestone and the medium-hardness stone materials, the compression strength of which is less than 200Mpa.

    3. This machine is of reliable and safe operation.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

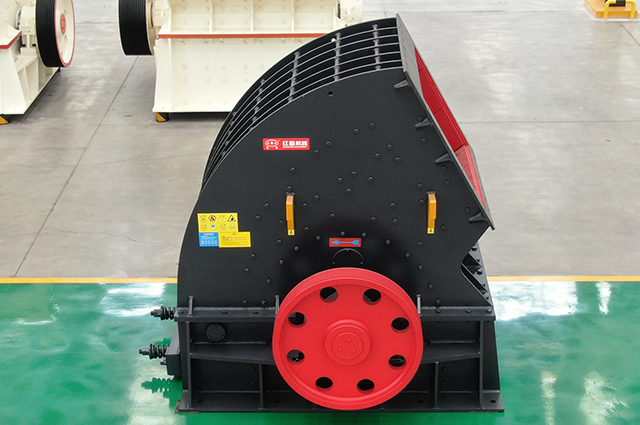

Product Display

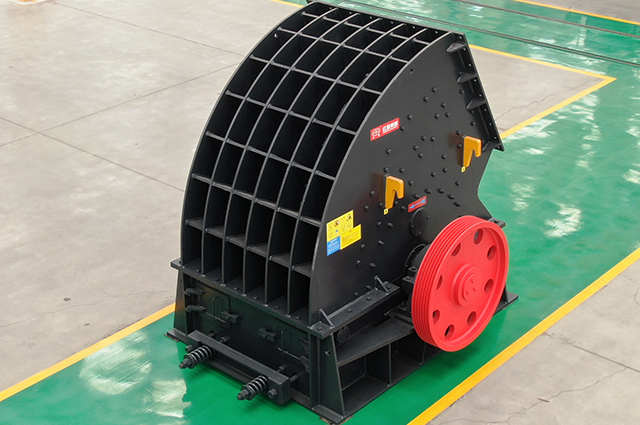

Product Display

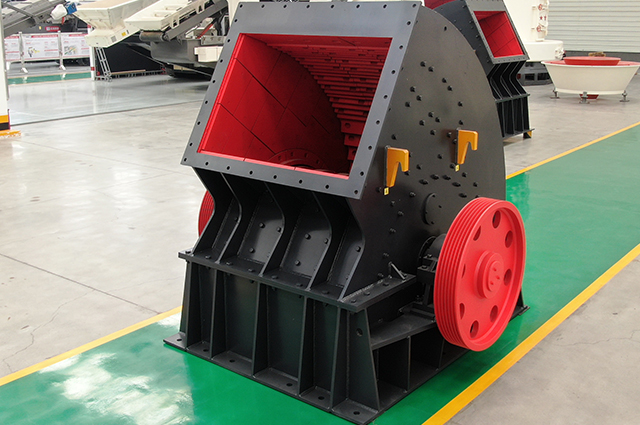

Product Display

Technical Parameter

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding Size (mm) Processing Capacity(t/h)
PCZ1308 ≤380 60-160
PCZ1410 ≤450 80-210
PCZ1610 ≤480 100-230
PCZ1612 ≤500 120-350
PCZ1615 ≤550 200-550
PCZ1716 ≤600 400-850
PCZ1720 ≤650 500-1000
PCZ1920 ≤750 800-1500
PCZ2225 ≤1000 1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Customer Cases

Henan Hongxing Mining Machinery is dedicated to being there for you for the life of your solution. Discover the various typical examples of our applications for your business.

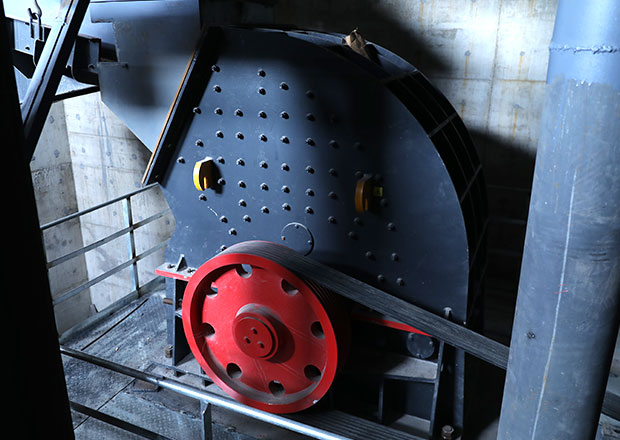

Case1

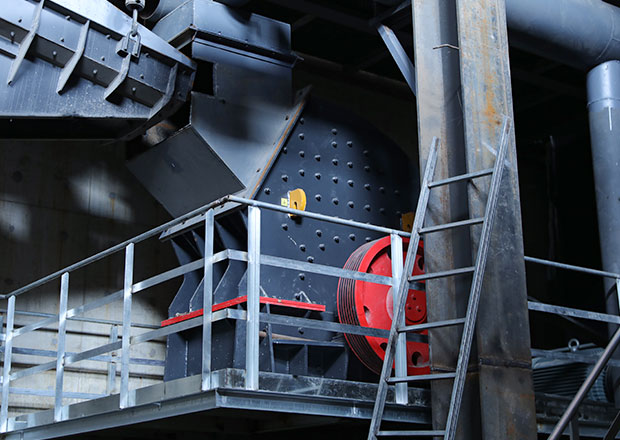

Case1

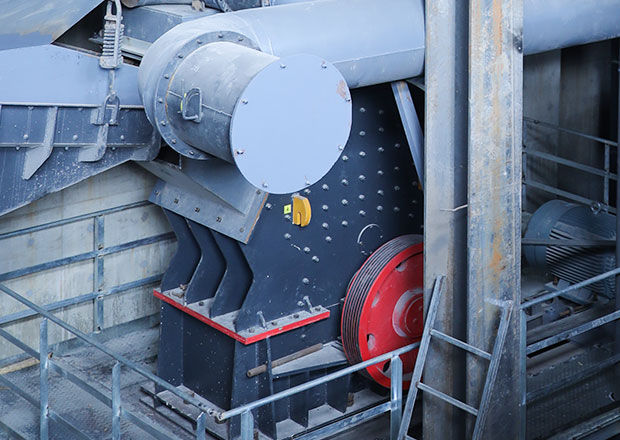

Case1
