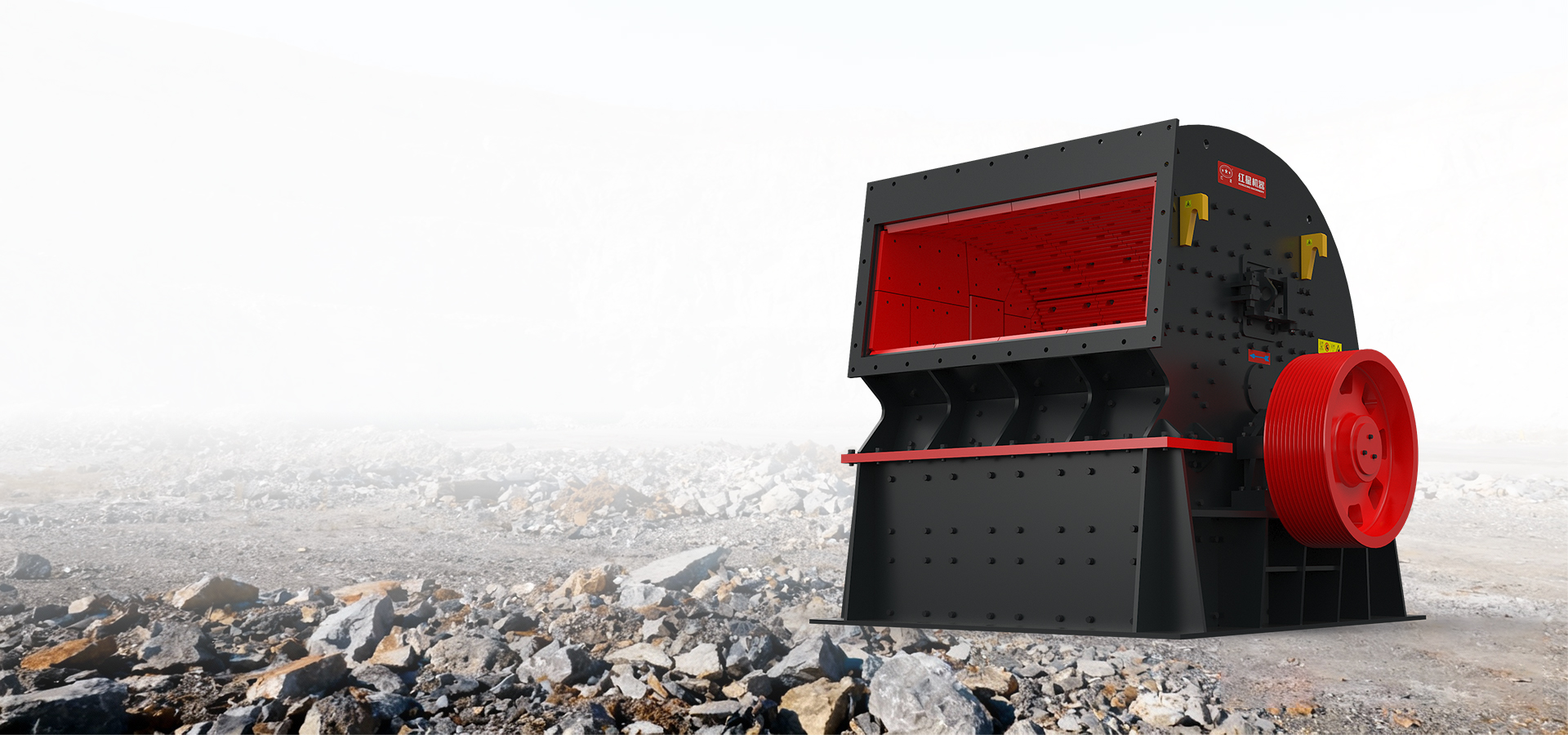

What is a PCX Series Hammer Shaping Crusher?

PCX hammer shaping crusher adopts the advanced production technology and process. It is a kind of advanced machine in the hammer crusher series in the industry, which has the characteristics of high efficiency, energy saving, and environmental protection. The machine is mainly used in cement, mining, coal preparation, power generation, chemical, and building materials industries. PCX hammer shaping crusher is widely used to crush kinds of brittle materials and materials with medium hardness, such as limestone, coal and so on.

  • PCX Hammer Shaping Crusher Features

    Cost Reduced, Low Consumption:molding for one time, there is no need for secondary crushing and shaping process, so it can reduce cost by about 40%, energy consumption, and investment.

    Widely Applied:it is particularly suitable for crushing limestone and stone with a compressive strength of less than 200Mpa.

    High Degree of Automation:Use an external oil pump, fuel tank, pipeline lubrication system. The machine can automatically shut down when the oil temperature is too high or the oil flow rate is too slow.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

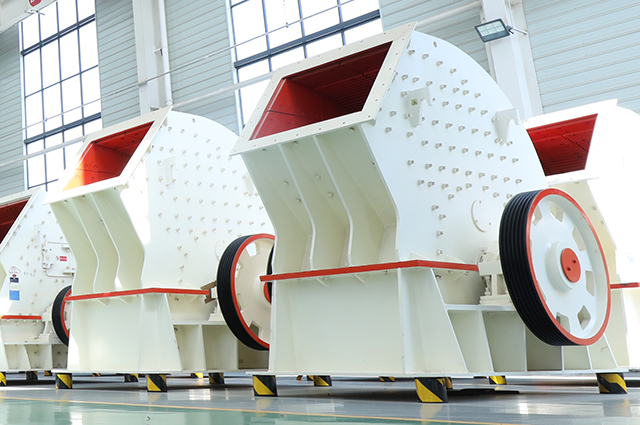

Product Display

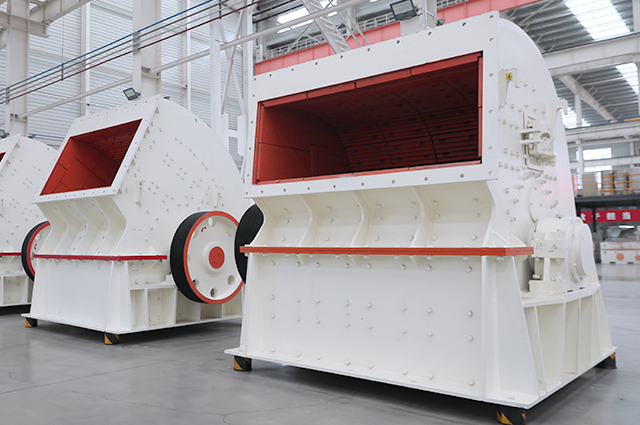

Product Display

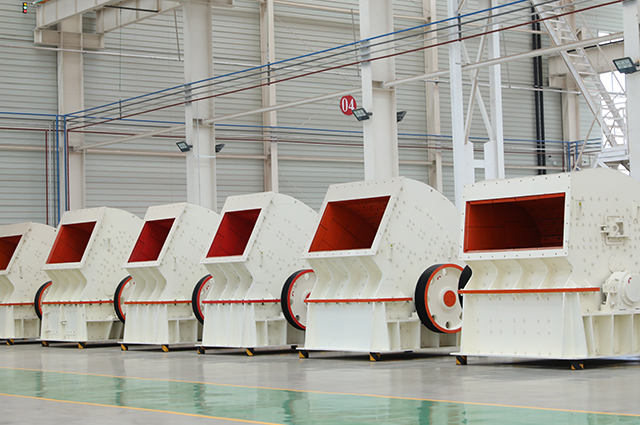

Product Display

Technical Parameter

Model Rotor diameter×Length（mm） Feed Opening Length×Width（mm） Feeding Size（mm） Processing Capacity（t/h） Power（kw） Dimensions(L×W×H)（mm）
PCX 0706 700×570 618×510 ≤150 30-70 75 1950×1340×1480
PCX 0808 800×750 780×610 ≤150 45-100 132 2280×1790×1570
PCX 0910 900×1000 1070×750 ≤200 70-200 2×110 2600×2200×1940
PCX 1012 1000×1180 1315×900 ≤200 130-300 2×132 2760×2430×2290
PCX 1213 1260×1280 1430×1010 ≤250 200-350 2×160 3067×2622×2580
PCX 1216 1260×1490 1630×1010 ≤250 230-500 2×200 3067×2832×2580
PCX 1220 1260×1950 2090×1010 ≤250 300-700 2×220 3067×3380×2580
PCX 1622 1600×2150 2300×950 ≤300 400-1200 2×315 4120×3680×3200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding Size（mm） Processing Capacity（t/h）
PCX 0706 ≤150 30-70
PCX 0808 ≤150 45-100
PCX 0910 ≤200 70-200
PCX 1012 ≤200 130-300
PCX 1213 ≤250 200-350
PCX 1216 ≤250 230-500
PCX 1220 ≤250 300-700
PCX 1622 ≤300 400-1200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
