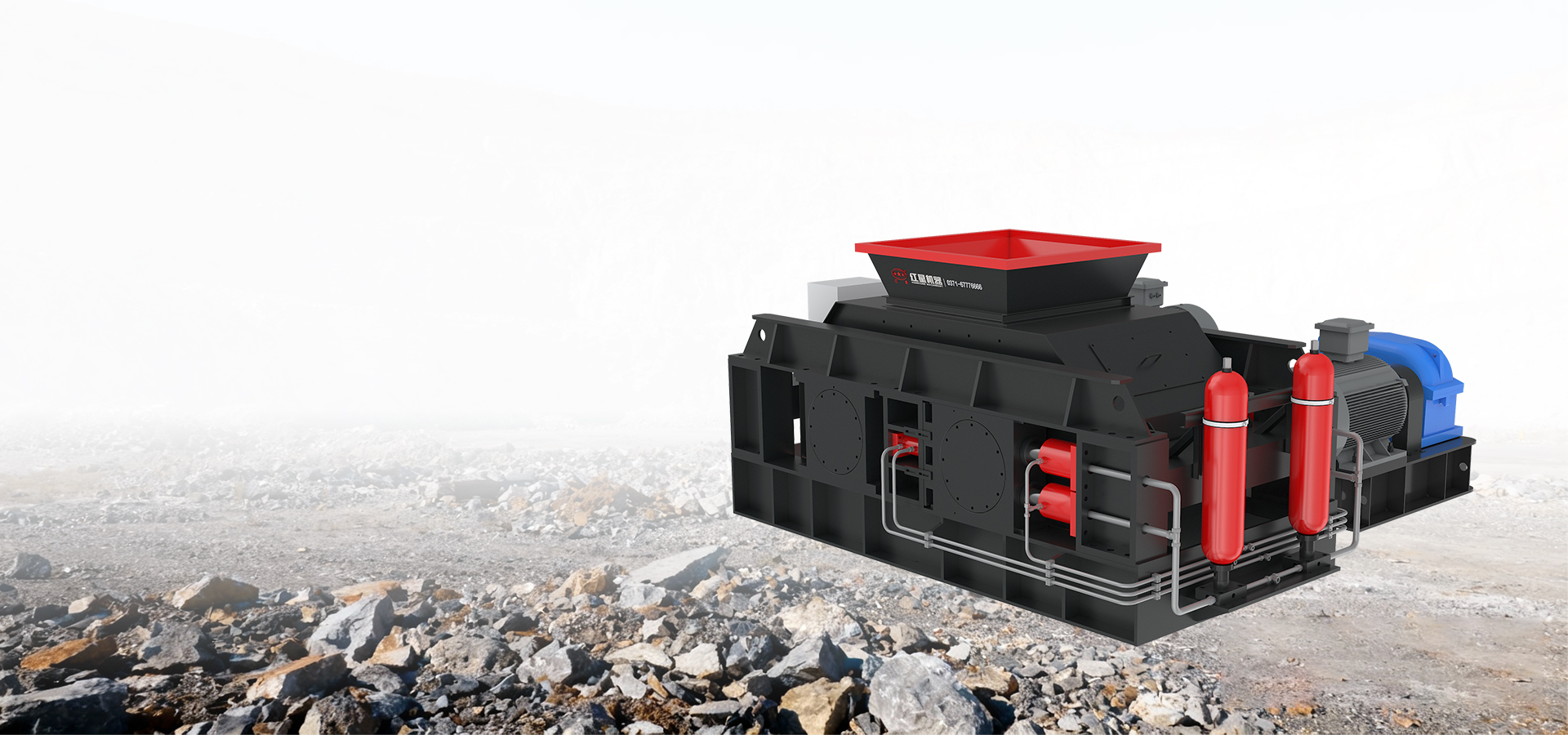

Hydraulic Roll Crusher

What is a Hydraulic Roll Crusher?

The hydraulic roller crusher is a new type of roller crusher that combines various advanced technologies. It has reasonable structure, advanced performance and powerful functions. Through excellent electromechanical and hydraulic integration design, the equipment can operate continuously, stably and reliably. In aggregate and grinding systems, it can generally increase the output by 30% - 40% and reduce the total energy consumption by 20% - 30%. It can finely crush materials of various hardness In mineral processing, chemical industry, refractory, stone processing, building materials and other industries.

Heavy thickened roller skin is adopted, with advanced materials, reasonable structure, wear resistance and impact resistance. The service life of parts is greatly extended with automatic lubrication device;

The equipment is equipped with an automatic control system, which is compact in structure, stable in operation, efficient and energy-saving. Compared with other crushing systems with the same performance, it can significantly reduce investment and usecosts, and has unparalleled advantages;

Keep the roller skin gap between 1-40mm stablely by hydraulic adjustment;

It is equipped with overload protection. When the unbreakable objects enter between the rollers, the rollers automatically give way and automatically recover to the set clearance.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

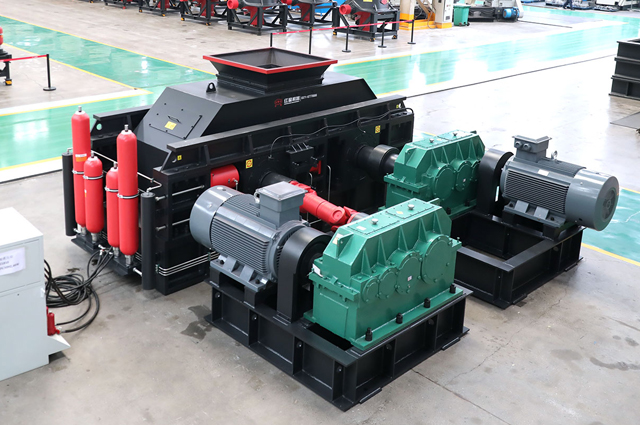

Product Display

Technical Parameter

Model	Roller Diameter (mm）	Roller Width (mm)	Maximum Feed Size(mm)	Corresponding processing capacity of discharge port(t/h)			Power(kw)
Model	Roller Diameter (mm）	Roller Width (mm)	Maximum Feed Size(mm)	5mm	10mm	15mm	Power(kw)
2PGY1008	ø 1000	800	≤40	20-80	30-110	50-150	2×55
2PGY1210	ø 1200	1000	≤60	25-100	50-180	80-240	2×90
2PGY1510	ø 1500	1000	≤80	30-130	60-240	90-330	2×160
2PGY1810	ø 1800	1000	≤100	40-170	80-320	120-450	2×250
2PGY2012	ø 2000	1200	≤120	60-220	110-400	170-600	2×315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Maximum Feed Size(mm)	Corresponding processing capacity of discharge port(t/h)
Model	Maximum Feed Size(mm)	5mm	10mm	15mm
2PGY1008	≤40	20-80	30-110	50-150
2PGY1210	≤60	25-100	50-180	80-240
2PGY1510	≤80	30-130	60-240	90-330
2PGY1810	≤100	40-170	80-320	120-450
2PGY2012	≤120	60-220	110-400	170-600

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
