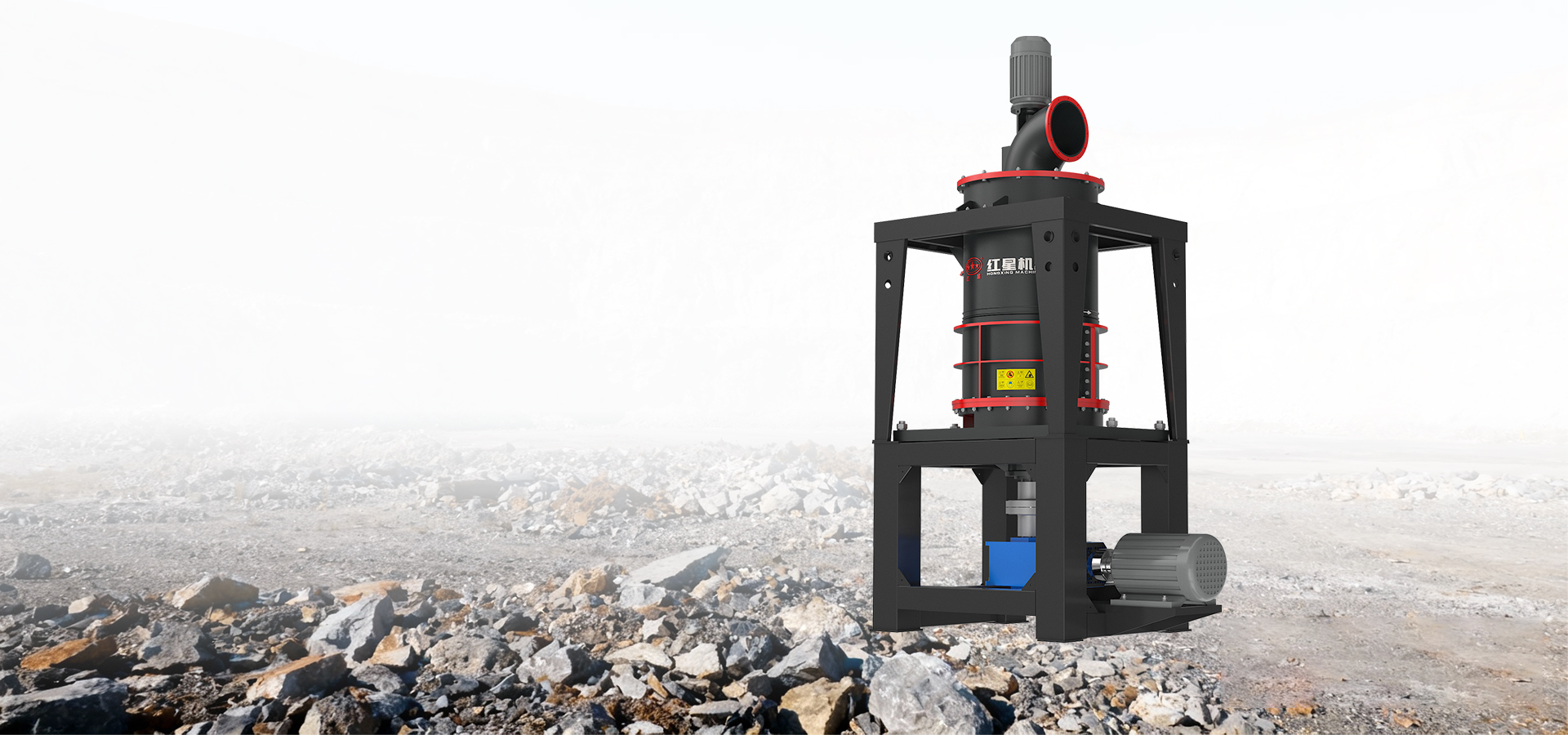

HWM Series Micro Powder Ring Roller Mill

HWM Series Micro Powder Ring Roller Mill

Get a Quote

What is a HWM Series Micro Powder Ring Roller Mill?

The three-ring medium-speed micro-powder mill is currently the most advanced fine grind- ing equipment for dry non-metallic ultra-fine powder in domestic market.The crushing of materials and the classification of powder are placed in the same body and operate inde- pendently.It has the characteristics of compact structure,adjustable product fineness from 1400-3000 mesh,easy maintenance,low energy consumption per unit product,and low investment.The crushing and grading of materials to finished products are carried out in a closed system.The dust-containing gas is treated by dust removal and does not cause pollution.It is an ideal equipment for green and environmental protection.

  • High fineness and high output,using an innovative crushing structure with multiple layers and multiple grinding channels,which not only improves the crushing efficiency in the cavity,but also makes the particles more evenly stressed in the crushing cavity.

    Green environmental protection.the use of pulse dust collector and silencer,sound insulation room,can effectively reduce dust pollution and noise pollution.

    High safety performance,no rolling bearings and screws and other fasteners inside the grinding chamber to improve the safety performance of the equipment.

Technical Parameter

Model Feeding particle size
(mm)		 Feed moisture
(%)		 Finished product particle size range
(μm)		 Capacity
(t/h)		 Main machine power
(kW)		 Powder classifier power
(kW)		 Fan power
(kW)
HWM800 <10 ≤3% 5~45 0.5~4 75-90 18.5-22 45-55
HWM1000 1~6 110-132 22-30 75-90
HWM1250 1.5~12 185-200 37-55 110-132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity
(t/h)		 Main machine power
(kW)
HWM800 0.5~4 75-90
HWM1000 1~6 110-132
HWM1250 1.5~12 185-200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
