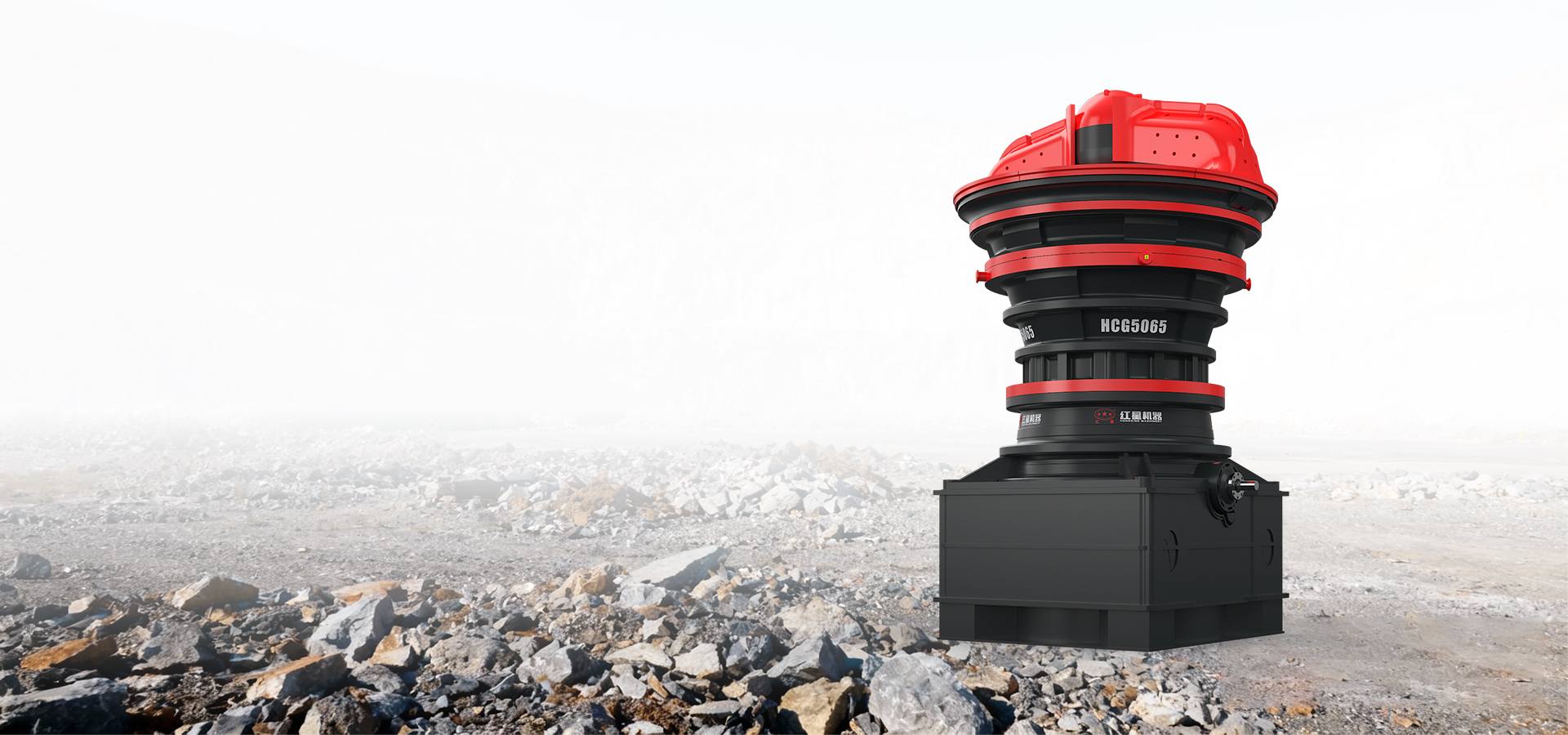

What is a HCG Series Gyratory Crusher?

Gyratory crusher is a vertical compound crusher, also known as a compound crusher, which is a machine for crushing production lines and sand making production lines. HCG Series Gyratory Crusher is a new type of high-efficiency coarse crushing equipment. It adopts international advanced technology manufacturing, the overall performance is in the leading position in the industry. This series of models can meet the configuration requirements of crushing system with processing capacity of 2000-10000t/h.

  • Spindle Position Control System

    Standard displacement sensor, can directly display the position of the spindle, hydraulic cylinder automatic pressure adjustment dis- charge port to compensate liner wear, ensure stable particle size,improve productivity.

  • Low Crushing Cost

    The crushing chamber with large inclination angle and long crushing surface enable the crusher to have super high crushing capacity. The super large crushing chamber is easy to crush stones, which improves the crushing efficiency and maximizes the service life of the lining plate.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

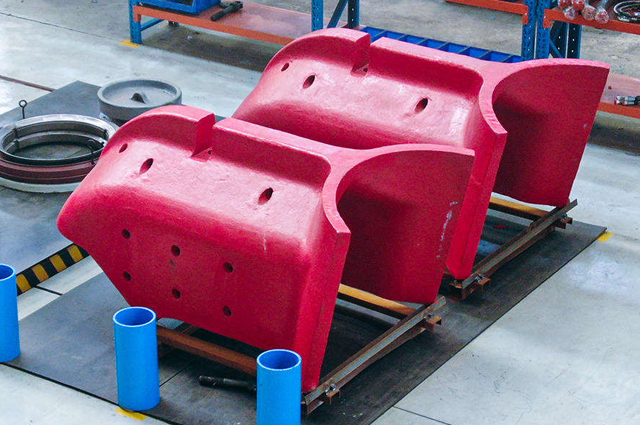

Product Display

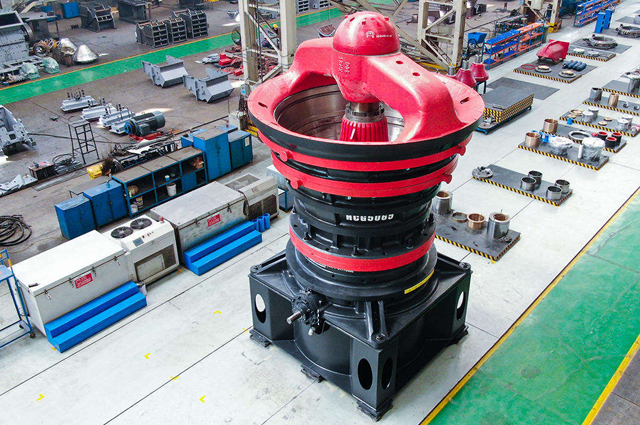

Product Display

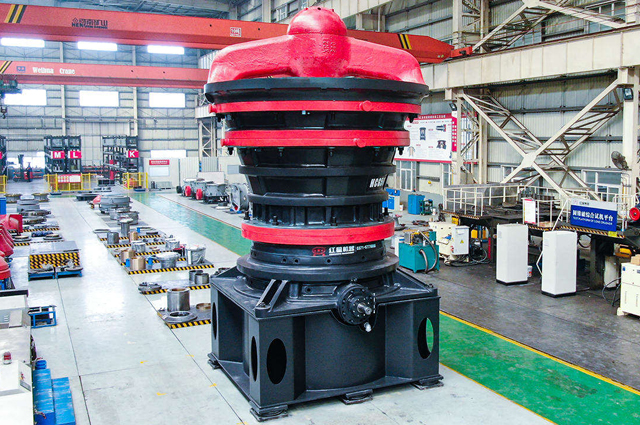

Product Display

Technical Parameter

Model Feeding opening size
(mm)		 Maximum Feeding size
(mm)		 Adjustment range of discharge port
(mm)		 Capacity
(t/h)		 Power
(kw)		 Dimensions
L×W×H(mm)
HCG4265 1065 900 140-175 2018-2878 400 3940×4170×6900
HCG5065 1270 1050 150-175 2403-2943 400 4460×4430×7610
HCG5475 1370 1150 150-200 2893-3493 450 4930×4925×8410
HCG6275 1575 1350 150-200 2898-4338 450 5580×5250×9090
HCG6089 1525 1300 165-230 4203-5813 630 5590×5445×10470
HCG60110 1525 1300 175-250 5543-8898 1250 6200×5940×11390

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding opening size
(mm)		 Maximum Feeding size
(mm)		 Capacity
(t/h)
HCG4265 1065 900 2018-2878
HCG5065 1270 1050 2403-2943
HCG5475 1370 1150 2893-3493
HCG6275 1575 1350 2898-4338
HCG6089 1525 1300 4203-5813
HCG60110 1525 1300 5543-8898

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
