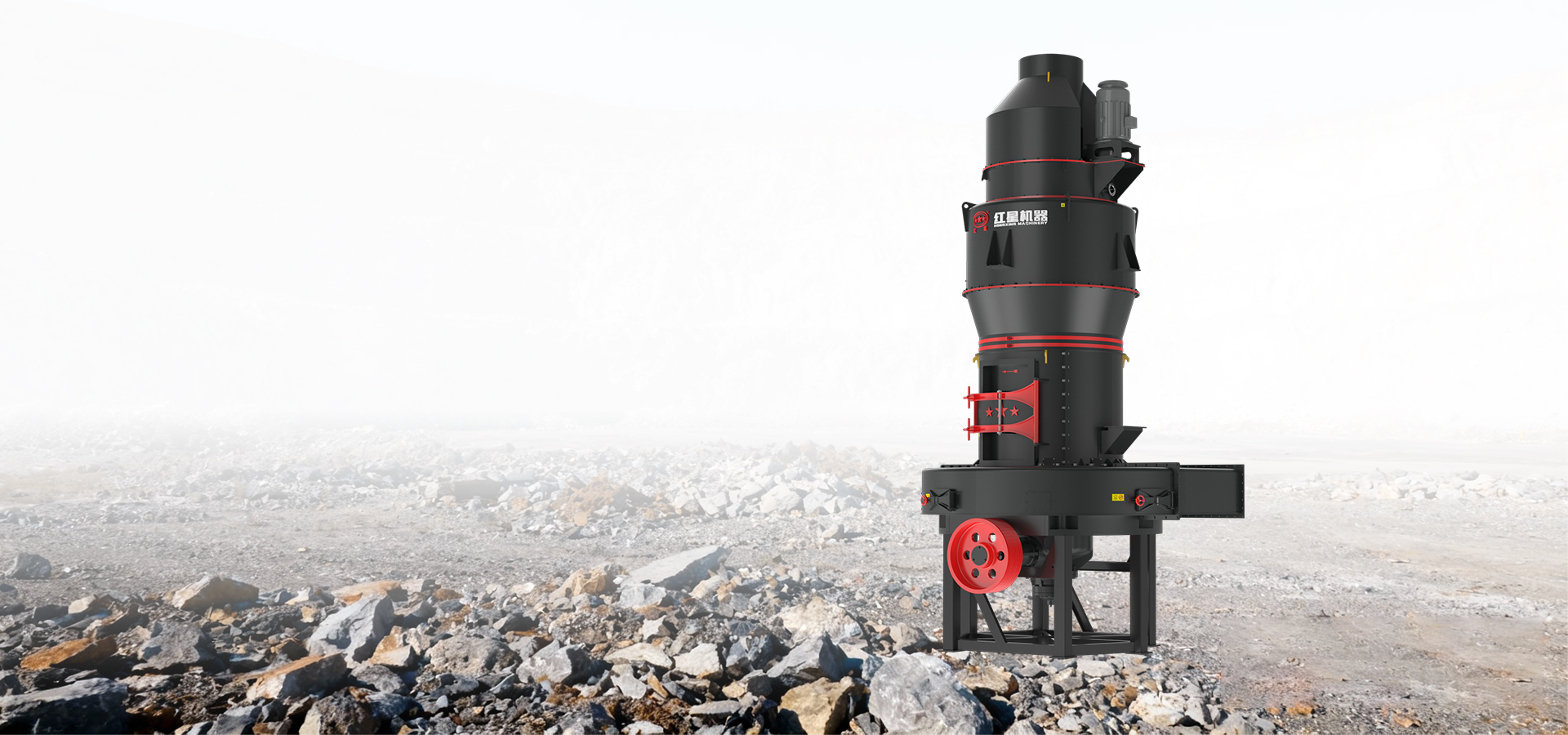

What is a H5M Series German Version Intelligent Grinding Mill?

The H5M series German version of the intelligent grinding mill is a new product with high technical level developed by Hongxing Group's scientific research institute on the basis of more than 40 years of experience in the research and development of mill equipment,according to the actual situation of users using mill equipment for many years,in response to the needs of the development of the milling industry,absorbing the cutting-edge domestic and foreign mature milling technology and concepts,and developing new products with high technological level with great dedication.

  • High efficiency and energy saving

    Use high-pressure centrifugal fans,energy-saving and efficient,ensuring stable wind power for system operation.

  • Low maintenance cost

    Unique spindle and grinding roller assembly thin oil lubrication structure,lubrication effect is significantly improved,bearing life can reach 3-10 years,refueling cycle of up to 6 months and the maintenance is simple.

  • High grinding pressure,high output

    With the grinding roller linkage boosting technology,the crushing and gninding force can be increased to 2.5 tons,significantly improving the ability to crush hard materials,and the production capacity of ordinary materials can be increased by more than 10%.

  • High transmission efficiency

    V-belt plus gear transmission,compact structure,smooth transmission and low noise.

  • High precision and wide range of sorting

    The stepless frequency conversion turbine powder separator improves the efficiency and accuracy of powder selection,so that the particle size of the finished product can be adjusted arbitrarily between 50 mesh to 800 mesh,and the adjustment range of the screening rate can reach 80-99%.

  • Clean and environmental protection

    Equipped with special pulse dust collector,the dust removal efficiency can be 99.9%,the emission concentration is s 10mg/Nm',which is better than the national environmental protection emission standard,and realizes dustfree operation in the production workshop.

Factory area product display

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios

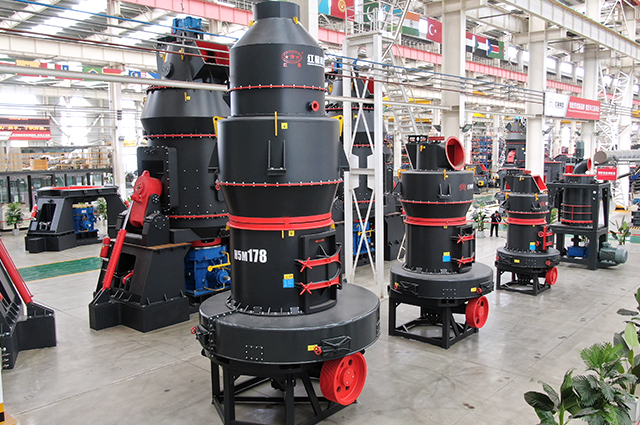

Product Display

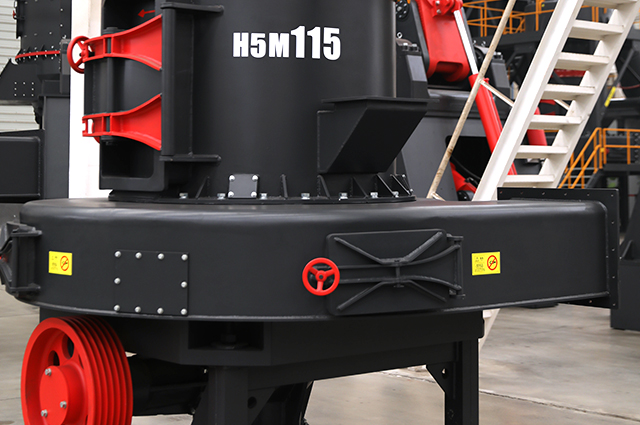

Product Display

Product Display

Technical Parameter

Model Feeding size
(mm)		 Finished product size
(mm)		 Capacity
(t/h)		 Grinding ring diameter
(mm)		 Number of grinding roller Power of main machine
(kW)		 Blower power
(kW)		 Analyzer power
(kW)
H5M115 <25 0.25-0.015 1.2-15 1220 4 55 55 15
H5M145 <30 0.25-0.038 2-26 1570 4 90/110 110/132 22
H5M178 <35 0.25-0.038 3-38 1950 4 185/200 200/220 30/37
H5M198 <35 0.25-0.038 6-45 2040 5 250/280 250/280 45/55
H5M218 <40 0.25-0.038 7-55 2340 4/6 315/355 315/355 55/75

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity
(t/h)		 Power of main machine
(kW)
H5M115 1.2-15 55
H5M145 2-26 90/110
H5M178 3-38 185/200
H5M198 6-45 250/280
H5M218 7-55 315/355

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
