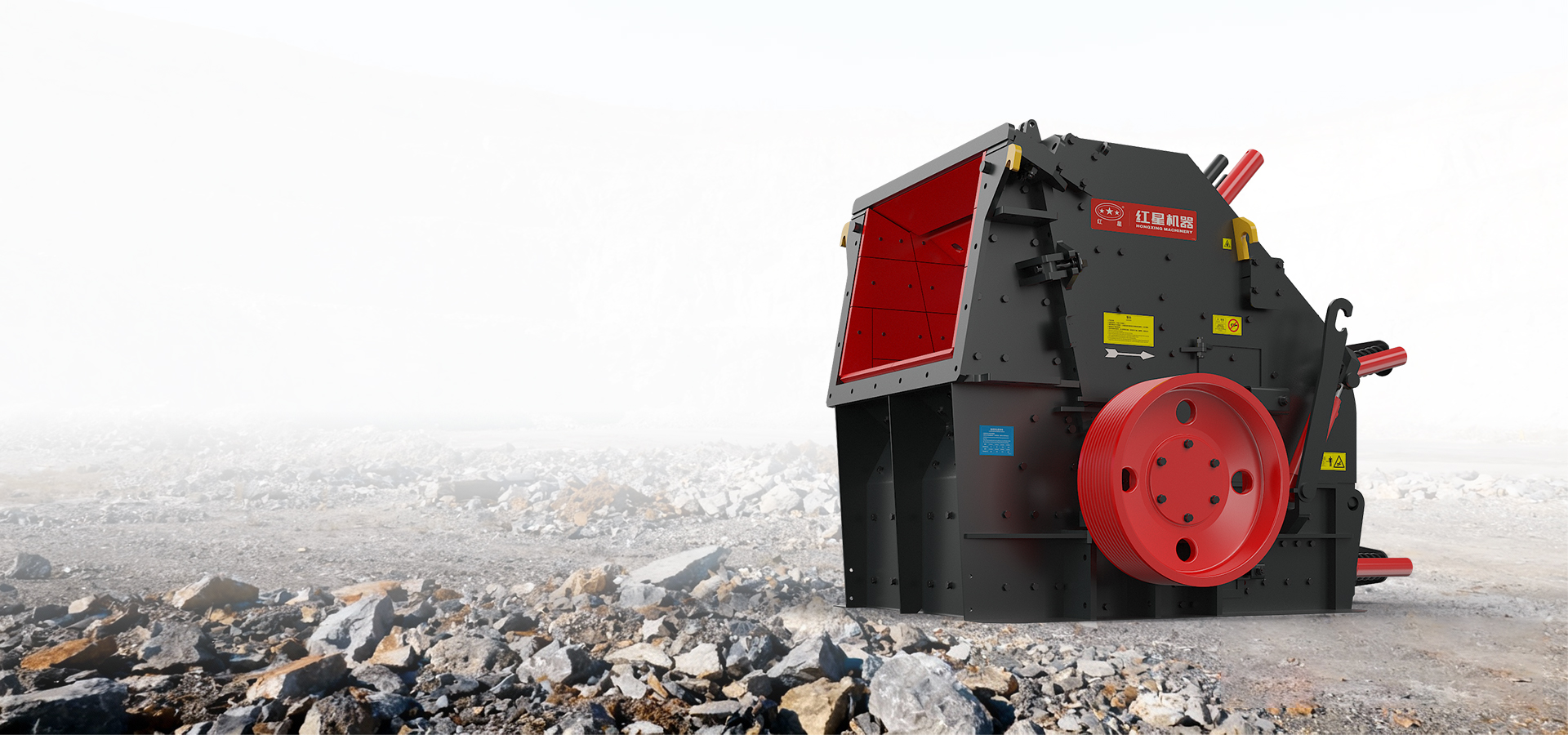

CI series impact crusher integrates the current domestic and international excellent impact crushing technology, optimizing the rotor and crushing cavity type according to different applications. new high wear-resistant materials are used, and the equipment performance and processing capacity are greatly improved.
Due to the finely designed rotor and cavity type, its rotating speed and power are reasonably matched to meet different application options for coarse crushing, medium, fine crushing, and material recovery.
The sturdy heavy-duty rotor structure increases the throughput and crushing ratio of the equipment; the high-quality welded structure ensures that the machine can withstand the large impact force and achieve a good crushing effect.
Highly-abrasive materials are used in large quantities to reduce the wear of wear parts, extend the replacement cycle, and save costs.

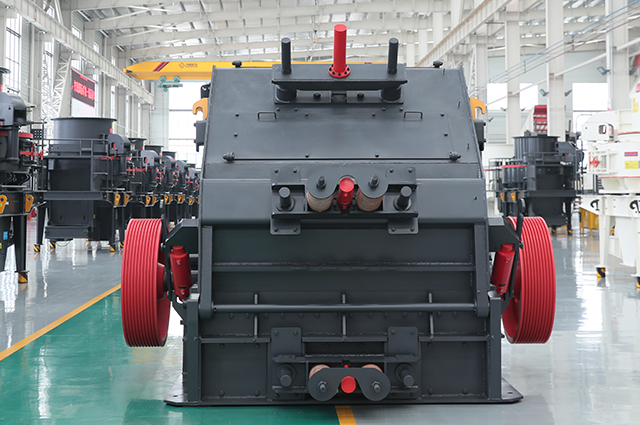

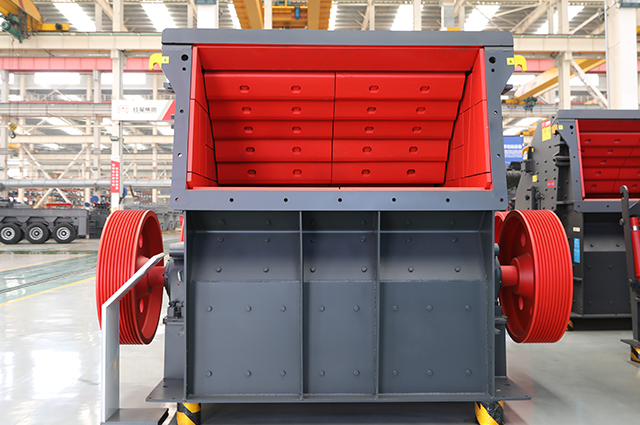

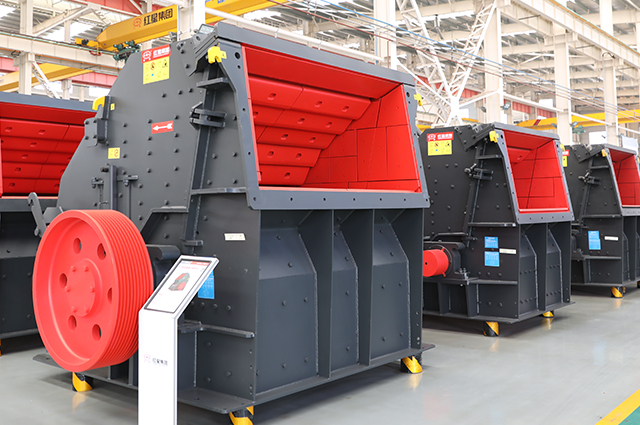

Intuitively presenting multi angle product equipment and interpreting enterprise manufacturing capabilities with real scenarios
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
| CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
| CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
| Cl1321 | 300 | 315 | 130-430 | 2955×3285×2585 |
| Cl1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
| Cl1524 | 350 | 2×315 | 240-700 | 3450×3925×2855 |
| Cl1630 | 400 | 710-800 | 300-900 | 3693×4520×3173 |
| Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
| CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
| CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
| CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
| CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1110 | 250 | 60-210 |
| CI1213 | 300 | 80-280 |
| CI1316 | 300 | 100-350 |
| Cl1321 | 300 | 130-430 |
| Cl1521 | 350 | 200-600 |
| Cl1524 | 350 | 240-700 |
| Cl1630 | 400 | 300-900 |
| Model | Maximum Feeding Size (mm) | Capacity(t/h) |
| CI1313 | 600 | 100-480 |
| CI1415 | 600 | 120-600 |
| CI1620 | 800 | 220-900 |
| CI2023 | 800 | 200-2000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
